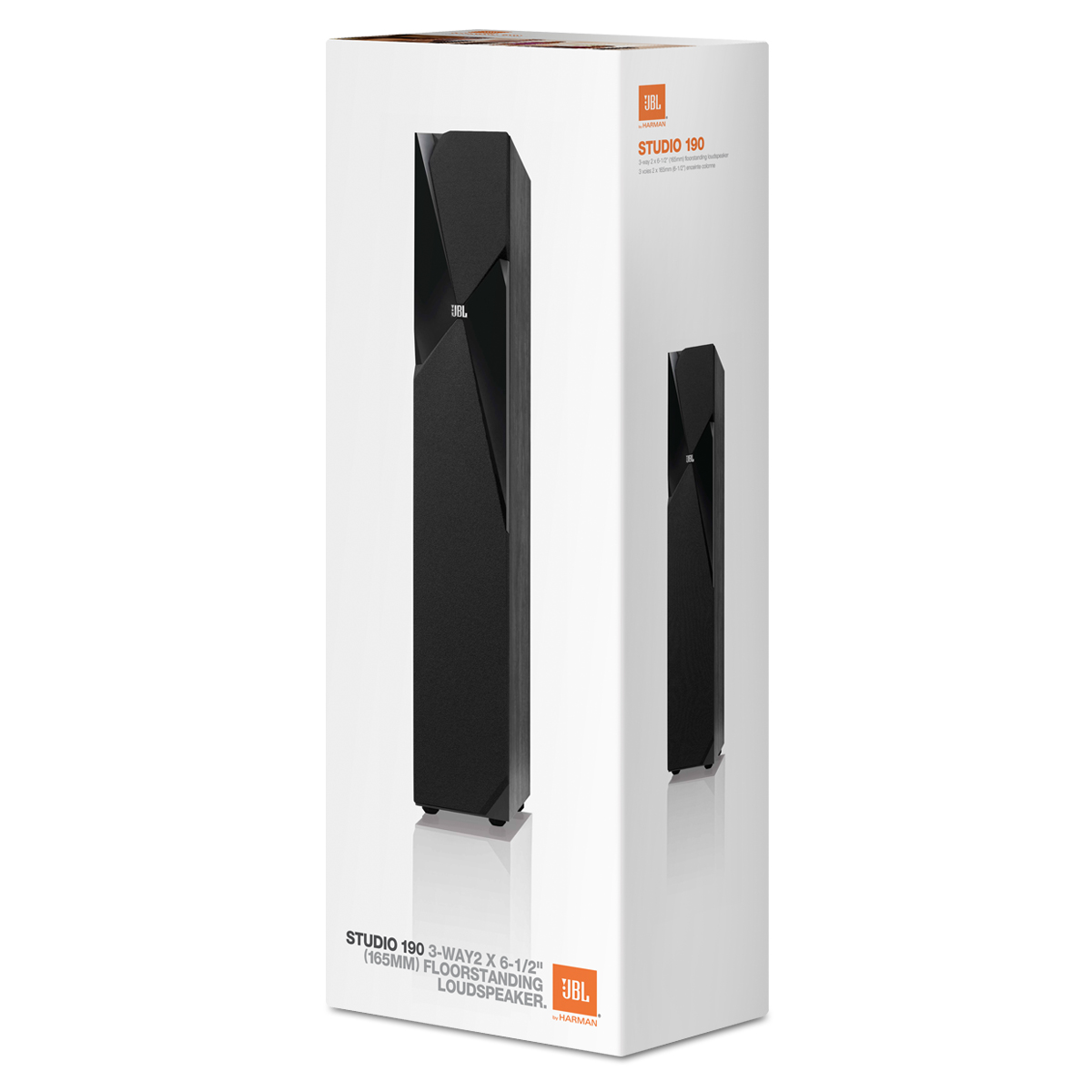

Studio 190


Three-Way Floor-Standing Loudspeaker

Product Actions
Fill your room with vibrant sound.

You’ve never heard films and music quite like this. Studio 190 floor-standing loudspeakers offer exceptional clarity and realism, with outstanding bass response. They feature dual woofers and midrange drivers with high-output PolyPlas™ cones, and CMMD® Lite tweeter domes with proprietary Bi-Radial® waveguides. Performance-proven, professional-grade technology delivers the dynamic range, tonal accuracy and spatial transparency that are the hallmarks of legendary JBL® sound. As powerful as JBL Studio 190 loudspeakers are, they look good too – making a dramatic design statement in any environment. Use them in combination with other Studio 1 Series speakers for a truly cinematic home experience, or use them alone to hear your favourite music like never before.

N° d’article STUDIO 190

Caractéristiques Générales

Wall-Mount Capable No
Finish Black
Series Studio 1 Series
Type 3-1/2-way dual floorstanding

Audio Specifications

Maximum Recommended Amplifier Power 200W
Nominal Impedance 8 ohms
Sensitivity (2.83V@1m) 90dB
Power Handling (Peak) 400 watts
Crossover Frequencies 800Hz, 3.2kHz, 6dB/octave
Frequency Response (-3dB) 40Hz – 22kHz
Power Handling (Recommended) 100 watts

Speaker Specifications

Midrange Transducer 4" (100mm) PolyPlas cone, magnetically shielded
High-Frequncy Transducer 1" CMMD Lite dome, magnetically shielded, in a Bi-Radial constant directivity waveguide
Low-Frequency Transducer Two 6-1/2" (165mm) PolyPlas cones, magnetically shielded


Width (in) 7-7/8
Weight (kg) 22.1
Height (mm) 1121
Depth (mm) 375
Width (mm) 200
Height (in) 44-1/8
Depth (in) 14-3/4
Weight (lb) 48.8
  • 1 Studio 190 floorstanding loudspeaker
  • Owner’s manual
